Description

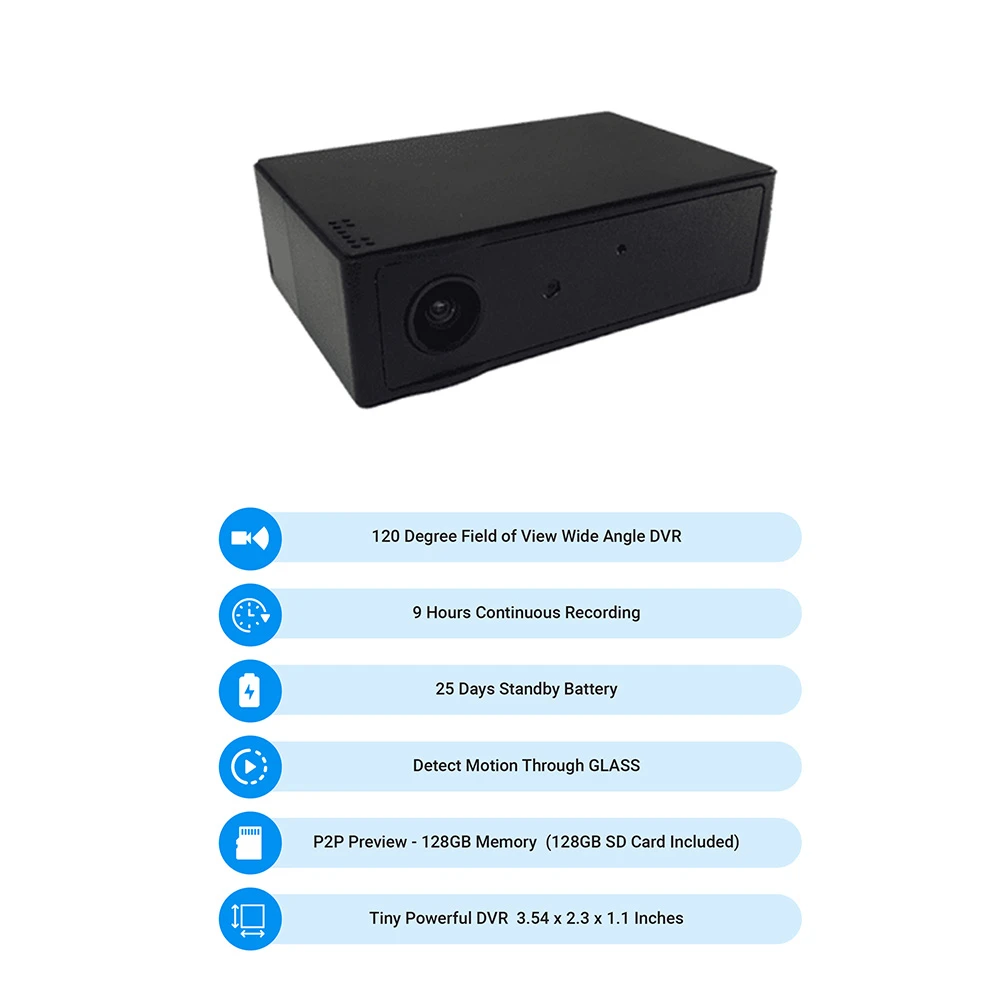

Cam-Vox 120 Wide Angle 1080P 128GB DVR

A wide-angle covert video recorder designed to capture more of the scene from a fixed position.

The Cam-Vox 120 Wide Angle is a 1080P covert video recorder designed for professional surveillance, investigative video and unattended monitoring where broader scene coverage is important.

Its 120° wide-angle field of view allows the camera to capture more of the surrounding area from a single position, while up to 9 hours of continuous recording, motion-triggered operation and local 128GB storage support longer surveillance assignments.

For professionals looking for a wide-angle covert camera, long-life video recorder or motion-activated surveillance camera, the Cam-Vox 120 provides a practical combination of broad scene coverage, autonomous recording and local video storage.

What Is the Cam-Vox 120 Wide Angle?

The Cam-Vox 120 Wide Angle is a compact long-life covert video recorder built around a 120° viewing angle.

Its primary advantage is simple:

It is designed to capture more of the surrounding scene from one fixed position.

The system combines 1080P video recording, wide-angle coverage, motion detection, local storage and extended battery operation for surveillance and investigative applications where repositioning the camera may not be practical.

Why Choose the Cam-Vox 120?

120° Wide-Angle Coverage

The defining feature of the Cam-Vox 120 is its 120° field of view.

A wider viewing angle can help cover more of a room, vehicle, entrance or other monitored area from a single position.

This is particularly useful when movement may occur across different parts of the scene and the operator cannot predict exactly where activity will take place.

Designed for Fixed-Position Surveillance

The Cam-Vox 120 is suited to fixed or semi-fixed deployments where the camera needs to remain in one position for an extended period.

The wider perspective allows the operator to prioritize scene coverage rather than repeatedly repositioning a narrower camera.

Up to 9 Hours of Continuous Recording

The recorder supports up to 9 hours of continuous 1080P recording on a full charge under specified conditions.

This provides extended coverage for temporary surveillance assignments, investigative work, vehicle deployments and other professional applications.

Up to 25 Days of Motion-Triggered Standby

When continuous recording is unnecessary, motion-triggered operation can extend standby time.

The manufacturer specifies up to 25 days of standby in motion-trigger mode under specified conditions.

25 days refers to motion-triggered standby, not 25 days of continuous video recording.

Motion Detection Through Glass

The motion detection system can detect movement through glass under suitable conditions.

This can support applications such as vehicle surveillance and window-facing observation.

The manufacturer specifies an approximate motion detection range of 4–7 metres, depending on conditions.

Local 128GB Storage

A 128GB Class 10 SD card is included.

Local recording provides a straightforward way to capture, retrieve and review footage without requiring continuous cloud infrastructure.

Key Capabilities

• 1920 × 1080 Full HD video
• 120° wide-angle field of view
• Up to 9 hours continuous recording
• Up to 25 days motion-triggered standby
• Motion-triggered recording
• Motion detection through glass under suitable conditions
• Approximately 4–7 m motion detection range
• 128GB Class 10 SD card included
• Support for microSD cards up to 256GB
• Adjustable motion sensitivity
• Audio recording with selectable audio on/off
• Time and date stamping
• Cyclic recording
• Local P2P WiFi preview
• USB file transfer
• OTG file access with compatible equipment
• Windows and Mac configuration software

Designed For & Common Applications

The Cam-Vox 120 is designed for situations where broad scene coverage and autonomous recording are important.

Common applications include:

• Professional surveillance
• Investigative video recording
• Private investigator assignments

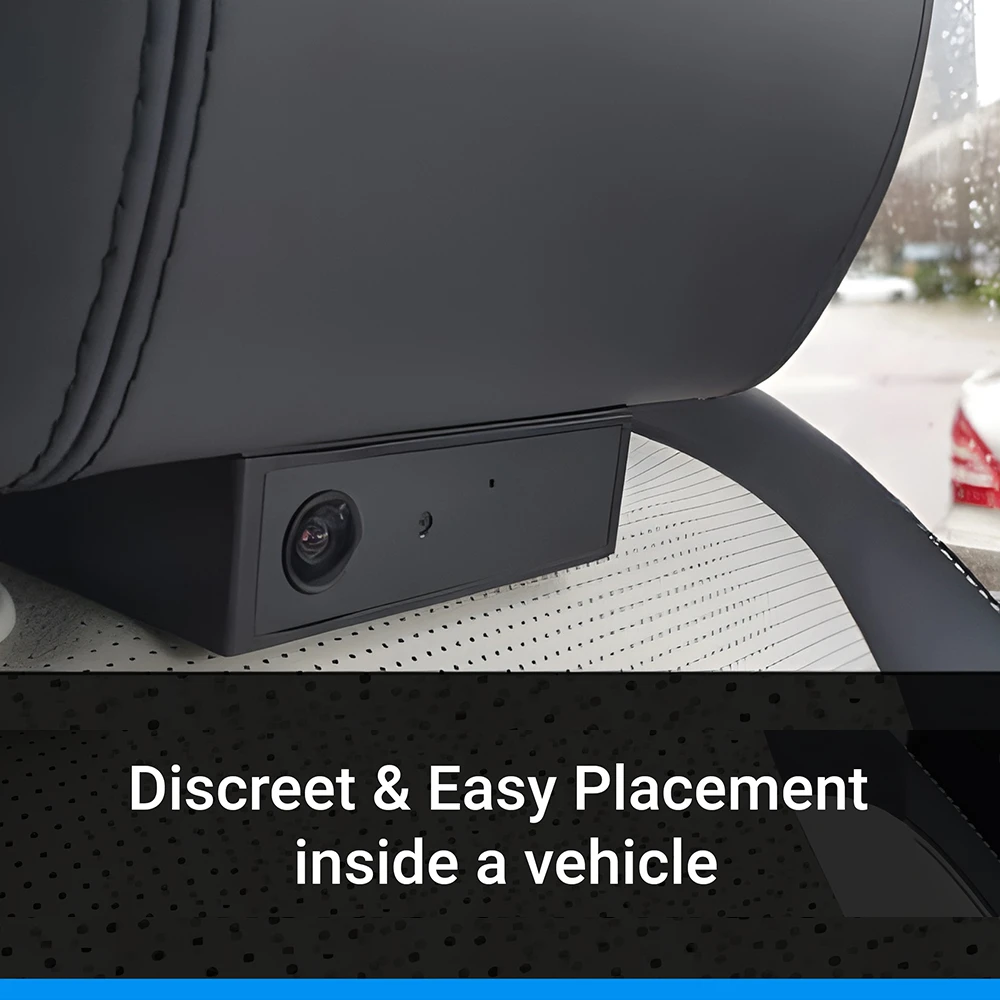

• Vehicle surveillance
• Office and workplace monitoring
• Meeting-room monitoring
• Entry-point observation
• Parking-area monitoring
• Window-facing observation
• Temporary fixed-position surveillance
• Unattended activity recording

The appropriate application depends on the environment, deployment requirements and applicable privacy, consent and surveillance laws.

How It Fits Into a Surveillance Workflow

The Cam-Vox 120 supports a straightforward deployment process:

Configure → Position → Record → Retrieve → Review

Before deployment, the operator can configure recording mode, motion sensitivity, audio and time/date settings.

The recorder is positioned to maximize the available 120° viewing area.

For uninterrupted coverage, continuous recording can provide up to 9 hours of operation.

For intermittent activity, motion-triggered recording can reduce unnecessary footage and extend standby time.

After the assignment, recorded files can be transferred for review, documentation and secure storage.

Why Wide-Angle Coverage Matters

The value of a wide-angle surveillance camera is not simply the number of degrees specified on the datasheet.

It is how effectively the camera covers the actual environment.

A narrower field of view may provide a more focused perspective but leave activity outside the frame.

The 120° perspective of the Cam-Vox 120 is designed to capture more of the surrounding scene from the same fixed position.

This can be useful when:

• Movement may occur across a broad area
• The camera cannot easily be repositioned
• One deployment point needs to cover multiple directions
• Scene context is important
• Reducing edge-of-frame blind areas is a priority

Wide-angle coverage does not guarantee that every detail will be equally visible across the frame. Distance, lighting, subject size, camera position and environmental conditions still affect recorded image quality.

Continuous Recording vs Motion-Triggered Operation

Operating Mode	Intended Use
Continuous Recording	Continuous video coverage for up to 9 hours on a full charge
Motion-Triggered Standby	Extended unattended readiness when activity is intermittent

Choose continuous recording when uninterrupted coverage is required.

Choose motion-triggered operation when capturing activity while reducing unnecessary footage is the priority.

Technical Specifications

Specification	Cam-Vox 120 Wide Angle
Product	Cam-Vox 120 Wide Angle 1080P 128GB DVR
SKU	PBN-CV120
UPC	0098931127149
Video Resolution	1920 × 1080 Full HD
Field of View	120°
Continuous Recording	Up to 9 hours
Motion-Triggered Standby	Up to 25 days
Motion Detection Range	Approximately 4–7 m
Motion Detection Through Glass	Yes, under suitable conditions
Storage	128GB Class 10 SD card included
Maximum Supported microSD	Up to 256GB
Memory Usage	Approx. 1.5–3GB/hour depending on video quality
Audio	Built-in microphone; configurable on/off
Time & Date Stamp	Yes
Cyclic Recording	Yes
Motion Sensitivity	Adjustable
Video Format	MP4
Audio Format	AAC
Wireless Preview	Local P2P WiFi
File Transfer	USB / SD card
Mobile Access	Compatible OTG devices
Configuration	Windows / Mac software
Battery	2900mAh 3.7V Li-ion

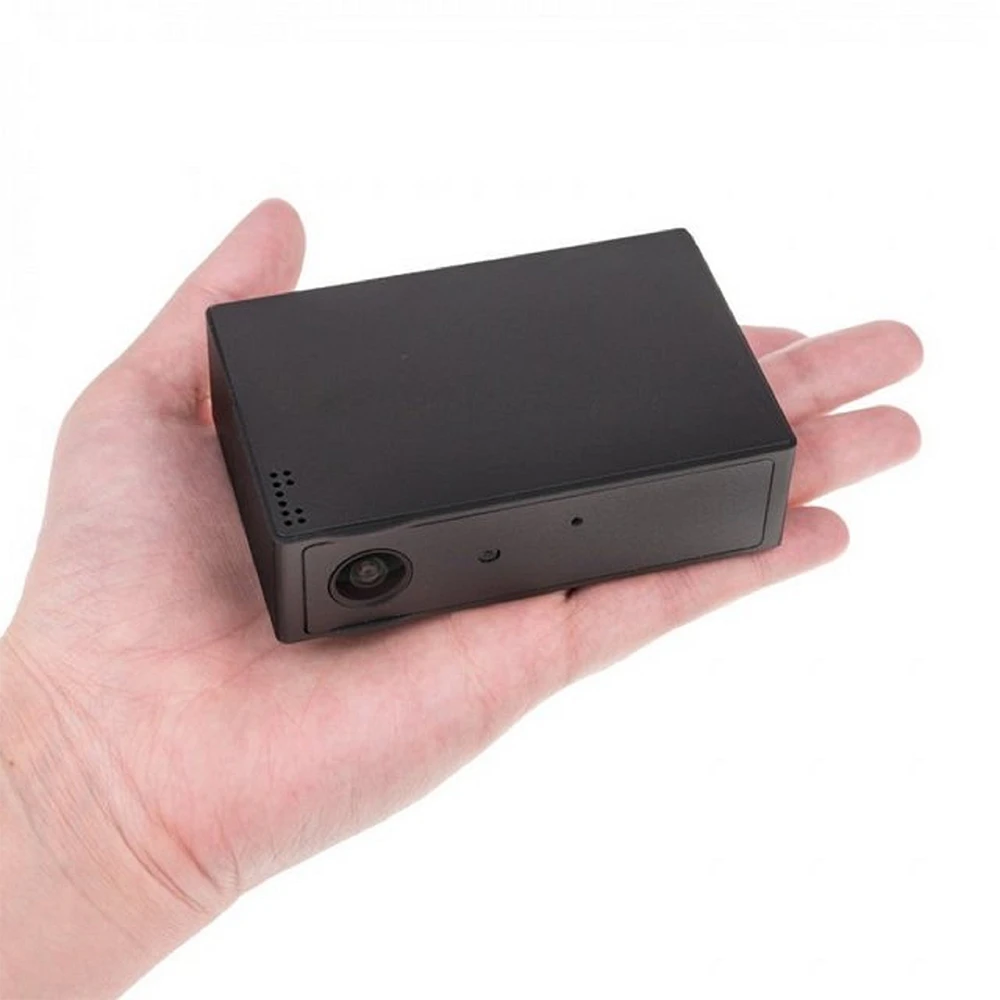

Dimensions	Approximately 9 × 5.8 × 2.8 cm
Operating Temperature	0°C to 45°C

Actual battery life, motion detection, image quality, storage duration and wireless performance depend on recording mode, lighting, placement, environmental conditions and other operating factors.

What the Cam-Vox 120 Can and Cannot Do

What It Can Do

The Cam-Vox 120 can:

• Record 1080P Full HD video
• Provide a 120° wide-angle view
• Record continuously for up to 9 hours
• Operate in motion-triggered mode for extended standby
• Detect movement through glass under suitable conditions
• Store recordings locally
• Record with or without audio
• Apply time and date information to recordings
• Operate autonomously after configuration
• Provide local wireless preview capability
• Transfer recordings for review and archiving

What It Cannot Automatically Do

The Cam-Vox 120 does not automatically:

• Identify people or objects
• Determine whether recorded activity is suspicious
• Establish identity or intent
• Guarantee detection through every type of glass
• Guarantee useful footage in every lighting condition
• Provide 25 days of continuous video recording
• Eliminate every blind area
• Replace a complete CCTV or professional surveillance system

A wide-angle field of view increases scene coverage, but correct positioning remains essential.

Frequently Asked Questions

What is the field of view of the Cam-Vox 120?

The Cam-Vox 120 provides a 120° field of view, designed to capture a broader scene from a fixed position.

Why choose a wide-angle covert video recorder?

A wide-angle covert video recorder can cover more of the surrounding environment from one position, which can be useful when activity may occur across a broader area.

How long can the Cam-Vox 120 record continuously?

It supports up to 9 hours of continuous recording on a full charge under specified conditions.

How long can it remain in motion-triggered standby?

The manufacturer specifies up to 25 days of standby in motion-trigger mode under specified conditions.

This is not 25 days of continuous video recording.

Does it have motion detection?

Yes. Motion detection can activate recording when movement is detected.

Can it detect motion through glass?

Yes, under suitable conditions. The manufacturer specifies an approximate detection range of 4–7 metres.

Is the Cam-Vox 120 suitable for vehicle surveillance?

Yes. Its wide-angle coverage and motion detection through glass make it suitable for certain vehicle-based surveillance applications.

Does it include a memory card?

Yes. A 128GB Class 10 SD card is included.

Can I use a larger memory card?

The manufacturer specifies support for microSD cards up to 256GB.

Does it record audio?

Yes. The built-in microphone supports configurable audio recording.

Does it have time and date stamping?

Yes. Time and date information can be included in recorded video.

Can recordings be transferred to a computer?

Yes. Recordings can be transferred through USB or accessed through the SD card.

Can I access recordings from a smartphone?

Compatible mobile devices can access files using an appropriate OTG adapter and connection.

Does the Cam-Vox 120 support WiFi?

The system supports local P2P WiFi preview for compatible local access.

This should not be confused with continuous cloud-based remote monitoring.

Is the Cam-Vox 120 suitable for fixed-position surveillance?

Yes. Its wide-angle design is particularly useful when a broader area needs to remain within the frame from one fixed position.

How is the Cam-Vox 120 different from the Cam-Vox 72 Internal?

The Cam-Vox 72 Internal emphasizes compact self-contained deployment.

The Cam-Vox 120 emphasizes broader scene coverage through its 120° field of view.

Choose the 72 Internal when compact deployment is the priority.

Choose the Cam-Vox 120 when capturing a wider area from one position is more important.

How is the Cam-Vox 120 different from the Cam-Vox 72 External?

The Cam-Vox 72 External uses a separate flexible camera lens that provides greater freedom over camera placement.

The Cam-Vox 120 is designed around wide-angle coverage from a fixed position.

Choose the External model when flexible camera positioning is the priority.

Choose the Cam-Vox 120 when broader scene coverage is the priority.

How is the Cam-Vox 120 different from the Cam-Vox Photo Frame?

The Cam-Vox Photo Frame focuses on object-integrated deployment with the camera concealed within a functional photo frame.

The Cam-Vox 120 focuses on wide-area coverage and fixed-position surveillance.

Choose the Photo Frame when environmental integration is the priority.

Choose the Cam-Vox 120 when wider scene coverage is the priority.

Procurement & Deployment Considerations

Before purchasing the Cam-Vox 120, consider:

• Required field of view
• Size of the monitored area
• Expected movement patterns
• Fixed versus flexible camera positioning
• Required recording duration
• Continuous versus motion-triggered recording
• Lighting conditions
• Whether monitoring through glass is required
• Storage requirements
• Audio requirements
• File-transfer requirements
• Physical placement
• Local wireless preview requirements
• Applicable privacy and surveillance regulations

The key purchasing question is:

Do you need the camera to focus on one point, or capture more of the environment around it?

If the requirement is to capture more of the surrounding environment from one fixed position, the Cam-Vox 120’s 120° wide-angle design provides a clear reason to choose this configuration.

Global Procurement Through Archthetic

Archthetic connects professional buyers with specialized surveillance and security technologies through its global technology procurement platform.

The Cam-Vox 120 Wide Angle is designed for buyers seeking a wide-angle covert video recorder that combines 120° scene coverage, 1080P video, local storage, motion detection and extended operating capability.

Discover → Evaluate → Procure → Deploy

For international procurement, quantities, configuration requirements or deployment considerations, contact Archthetic.
