Description

Cam-Vox 72 Vision X Internal 1080P 128GB DVR

Compact long-life covert video recorder for professional surveillance, investigation and unattended recording.

The Cam-Vox 72 Internal is a compact 1080P covert video recorder with an integrated camera, 128GB storage and long-duration battery operation.

It is designed for situations where the priority is compact deployment, autonomous recording and extended operating time rather than a permanent camera installation or continuous cloud connectivity.

With up to 9 hours of continuous recording and up to 25 days of motion-triggered standby, the Cam-Vox 72 Internal provides a practical solution for professional surveillance and investigative applications where repeated charging or frequent intervention is not desirable.

What Is the Cam-Vox 72 Internal?

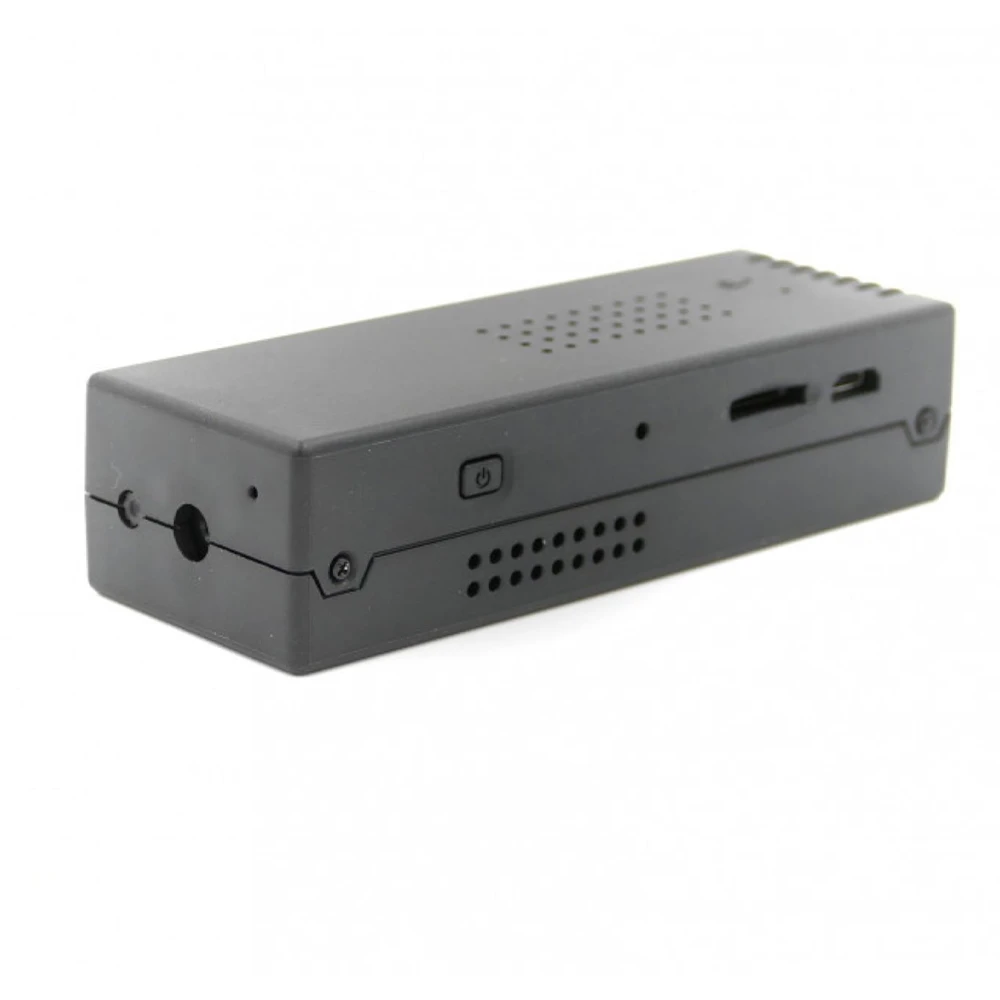

The Cam-Vox 72 Internal is a self-contained covert video recorder combining the camera, recorder and battery in one compact unit.

Its 72° field of view, 1080P video recording and motion detection make it suitable for documenting activity in controlled indoor environments, vehicles and other temporary or unattended deployments.

Unlike an external-lens version, the Internal model uses an integrated camera design. This makes it particularly suited to applications where simplicity, portability and self-contained deployment are more important than separating the camera from the recorder.

Why Choose the Cam-Vox 72 Internal?

Compact Self-Contained Design

The integrated camera and recorder measure approximately 9.7 × 3.7 × 2.5 cm (3.8 × 1.5 × 1 in).

The compact form factor makes the system easy to transport and practical for situations where a larger surveillance system would be unnecessary or impractical.

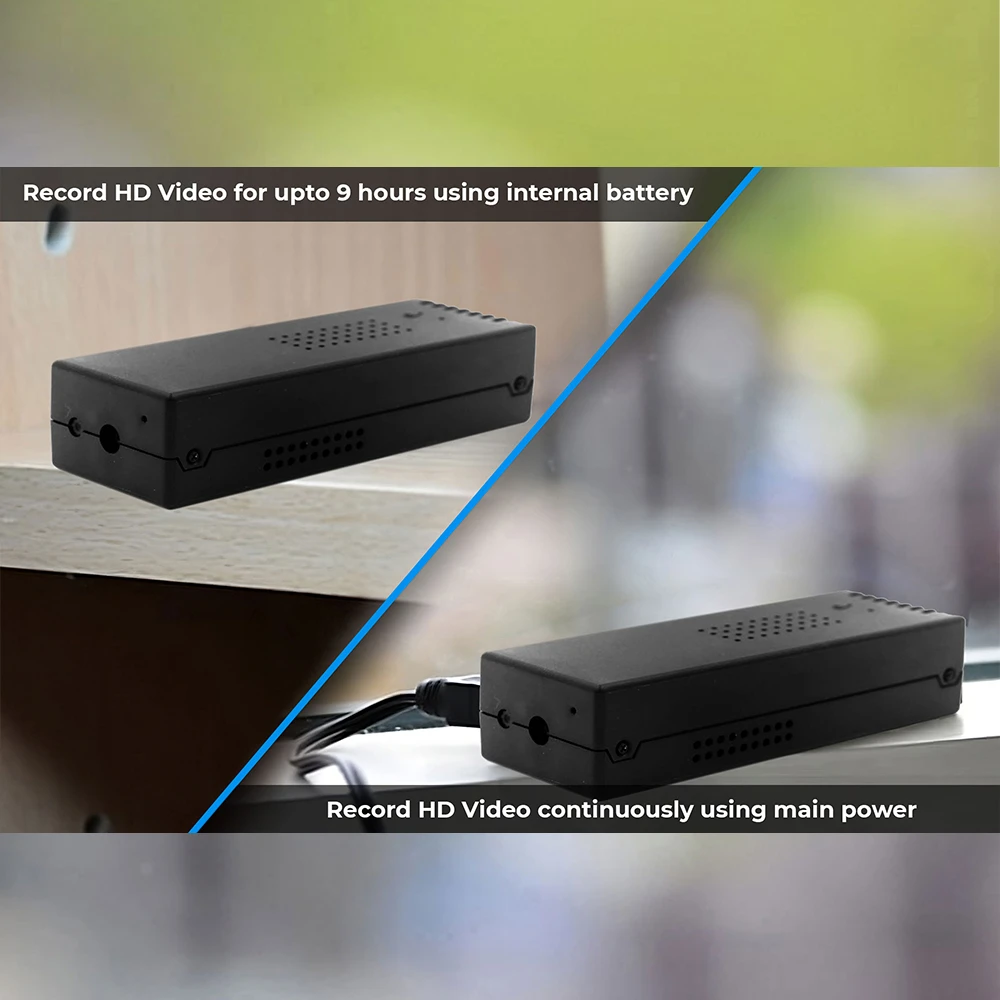

Up to 9 Hours of Continuous Recording

The Cam-Vox 72 Internal can record 1080P video continuously for up to 9 hours on a full charge.

This makes it suitable for extended meetings, field assignments, vehicle surveillance and other situations requiring sustained recording without frequent battery changes.

Up to 25 Days of Motion-Triggered Standby

For applications where continuous recording is unnecessary, the recorder can remain in motion-triggered standby for up to 25 days under specified conditions.

This allows the device to remain ready for activity while reducing unnecessary battery and storage consumption.

25 days refers to motion-triggered standby operation, not 25 days of continuous video recording.

Motion Detection Through Glass

The motion detection system can detect movement through glass under suitable conditions, making the device relevant to vehicle and window-facing applications.

Actual detection performance depends on distance, glass, lighting and environmental conditions.

Local Recording

Video is recorded locally to a 128GB Class 10 SD card, which is included with the device.

Local storage provides a straightforward workflow for recording, retrieving and reviewing footage without requiring continuous cloud connectivity.

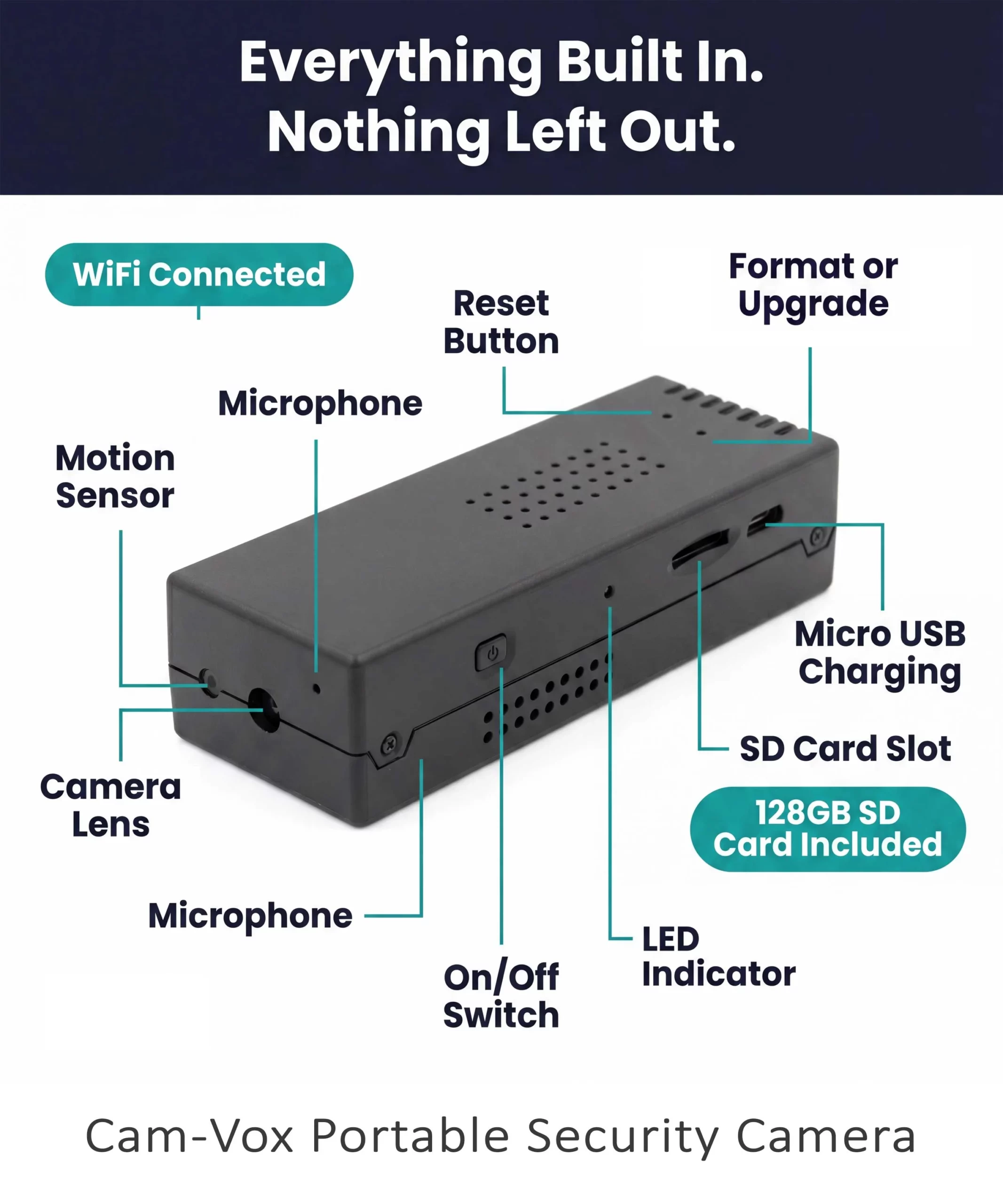

Key Capabilities

• 1080P Full HD video recording
• 72° field of view
• Up to 9 hours continuous recording
• Up to 25 days motion-triggered standby
• Motion detection
• Motion detection through glass under suitable conditions
• Low-light recording capability
• 128GB Class 10 SD card included
• Support for larger microSD capacity up to 256GB
• Time and date stamping
• Audio recording with selectable audio on/off
• Cyclic recording
• Automatic orientation/flip detection
• Adjustable motion sensitivity
• Windows and Mac configuration software
• USB file transfer
• OTG file access with a compatible adapter

Designed For Professional Surveillance & Investigation

The Cam-Vox 72 Internal is particularly relevant where a small, self-contained and long-duration video recorder is required.

Common applications include:

• Professional surveillance
• Investigative video recording
• Private investigator assignments
• Security investigations
• Vehicle-based surveillance
• Temporary accommodation monitoring
• Meeting and workplace documentation
• Unattended activity recording
• Temporary security deployments

The appropriate application depends on local laws, organizational policies and the circumstances of the recording.

How the Cam-Vox 72 Internal Fits Into a Surveillance Workflow

The recorder is designed around a simple deployment process:

Configure → Deploy → Record → Retrieve → Review

Before deployment, the operator can configure recording settings, motion sensitivity, audio options and time/date settings using the available Windows or Mac software.

Once configured, the device can operate autonomously until the recording assignment is complete.

Recorded files can then be transferred through USB or accessed using a compatible OTG setup for review and secure storage.

This makes the Cam-Vox 72 Internal particularly useful when the objective is to capture activity over an extended period without maintaining a permanent surveillance installation.

Continuous Recording vs Motion-Triggered Standby

The Cam-Vox 72 Internal provides two fundamentally different operating approaches.

Mode	Purpose
Continuous Recording	Records continuously for up to 9 hours on a full charge
Motion-Triggered Standby	Remains ready to record when movement is detected, with up to 25 days of standby under specified conditions

Choose continuous recording when uninterrupted video coverage is required.

Choose motion-triggered operation when the priority is longer deployment time and recording activity rather than empty footage.

Technical Specifications

Specification	Cam-Vox 72 Internal
Product	Cam-Vox 72 Internal
SKU	PBN-CV72-i
Video Resolution	1920 × 1080 Full HD
Field of View	72°
Continuous Recording	Up to 9 hours
Motion-Triggered Standby	Up to 25 days
Motion Detection Range	Approximately 4–7 m, depending on conditions
Motion Detection Through Glass	Yes, under suitable conditions
Storage	128GB Class 10 SD card included
Maximum Supported microSD	Up to 256GB
Audio	Built-in microphone; audio can be enabled or disabled
Video Format	MP4
Audio Format	AAC
Time & Date Stamp	Yes
Cyclic Recording	Yes
Orientation Detection	Automatic flip/orientation detection
Motion Sensitivity	Adjustable
Configuration	Windows / Mac software
File Transfer	USB
Mobile File Access	OTG with compatible adapter
Battery	2400mAh 3.7V Li-ion
Dimensions	9.7 × 3.7 × 2.5 cm
Operating Temperature	0°C to 45°C

Performance varies according to recording mode, motion activity, lighting, environment, storage configuration and other operating conditions.

What the Cam-Vox 72 Internal Can and Cannot Do

What It Can Do

The Cam-Vox 72 Internal can:

• Record Full HD 1080P video
• Record continuously for up to 9 hours
• Operate in motion-triggered standby for extended periods
• Detect movement through glass under suitable conditions
• Record with or without audio
• Apply time and date information to recordings
• Store footage locally
• Operate autonomously after configuration
• Support USB and compatible OTG file transfer
• Provide a compact solution for professional surveillance and investigative recording

What It Does Not Provide

The Cam-Vox 72 Internal should not be treated as:

• A permanent CCTV installation
• A replacement for a full surveillance system
• A guaranteed 25-day continuous recorder
• A universal night-vision system
• An automatic identification system for people or objects
• A substitute for professional investigation procedures

The device records what its camera can physically observe under the conditions in which it is deployed.

Frequently Asked Questions

How long can the Cam-Vox 72 Internal record continuously?

It can record up to 9 hours continuously on a full charge under specified operating conditions.

How long can it remain in standby?

The manufacturer specifies up to 25 days of motion-triggered standby. This should not be interpreted as 25 days of continuous video recording.

Does the Cam-Vox 72 Internal record in 1080P?

Yes. It records 1920 × 1080 Full HD video.

Does it have motion detection?

Yes. Motion detection can trigger recording and help conserve battery and storage when continuous recording is unnecessary.

Can it detect motion through glass?

Yes, under suitable conditions. This capability is particularly relevant to vehicle and window-facing deployments.

Does it record audio?

Yes. The device includes a built-in microphone, and audio recording can be enabled or disabled.

Does it include storage?

Yes. A 128GB Class 10 SD card is included.

Can I use a larger memory card?

The manufacturer specifies support for microSD cards up to 256GB.

Can I add a time and date stamp?

Yes. Time and date stamping can be configured for recorded video.

Can the recording settings be changed?

Yes. Dedicated configuration software for Windows and Mac allows users to configure available recording settings, including motion sensitivity and audio options.

Can I transfer the recorded files to a computer?

Yes. Recorded files can be transferred through USB.

Can I access the files from a smartphone?

Yes, using a compatible OTG adapter and supported mobile device. The OTG adapter is not included as standard.

Is the Cam-Vox 72 Internal a WiFi camera?

Its primary function is local video recording, not continuous cloud-based remote surveillance. Do not purchase this model on the assumption that it provides the functionality of a dedicated WiFi/IP camera.

What is the difference between the Cam-Vox 72 Internal and External?

The Internal model has an integrated camera and recorder in one compact unit.

The External model uses a separate flexible camera lens, allowing the camera position to be separated from the recorder body.

Choose the Internal model when compact self-contained deployment is the priority. Choose the External model when camera placement flexibility is more important.

Is the Cam-Vox 72 Internal suitable for vehicle surveillance?

Yes. Its motion detection through glass, compact form factor and long operating time make it suitable for certain vehicle-based surveillance applications.

Is this a professional surveillance camera?

It is a compact covert video recorder designed for professional surveillance and investigative applications. It should be evaluated according to the specific operational requirement rather than treated as a replacement for every type of surveillance system.

Procurement & Deployment Considerations

Before purchasing the Cam-Vox 72 Internal, consider:

• Required recording duration
• Continuous versus motion-triggered recording
• Available lighting
• Required field of view
• Whether recording through glass is required
• Storage requirements
• Audio requirements
• File-transfer workflow
• Physical placement
• Battery charging requirements
• Local privacy and surveillance regulations
• Whether an external-lens configuration would better suit the deployment

For professional deployments, the most important question is not simply “How many features does the recorder have?”

It is:

“Does its size, recording duration, detection method and deployment architecture match the actual assignment?”

Global Procurement Through Archthetic

Archthetic connects professional buyers with specialized security and surveillance technologies through its global technology procurement platform.

The Cam-Vox 72 Internal is suited to buyers looking for a compact, long-life video recorder for professional surveillance, investigation and authorized monitoring applications.

Discover → Evaluate → Procure → Deploy

For international procurement, configuration requirements, quantities or deployment considerations, contact Archthetic for assistance.
