Description
Cam-Vox 72 External 1080P 128GB DVR – Motion Activated Camera
Flexible external-lens video recorder for discreet, long-duration and custom surveillance deployments.

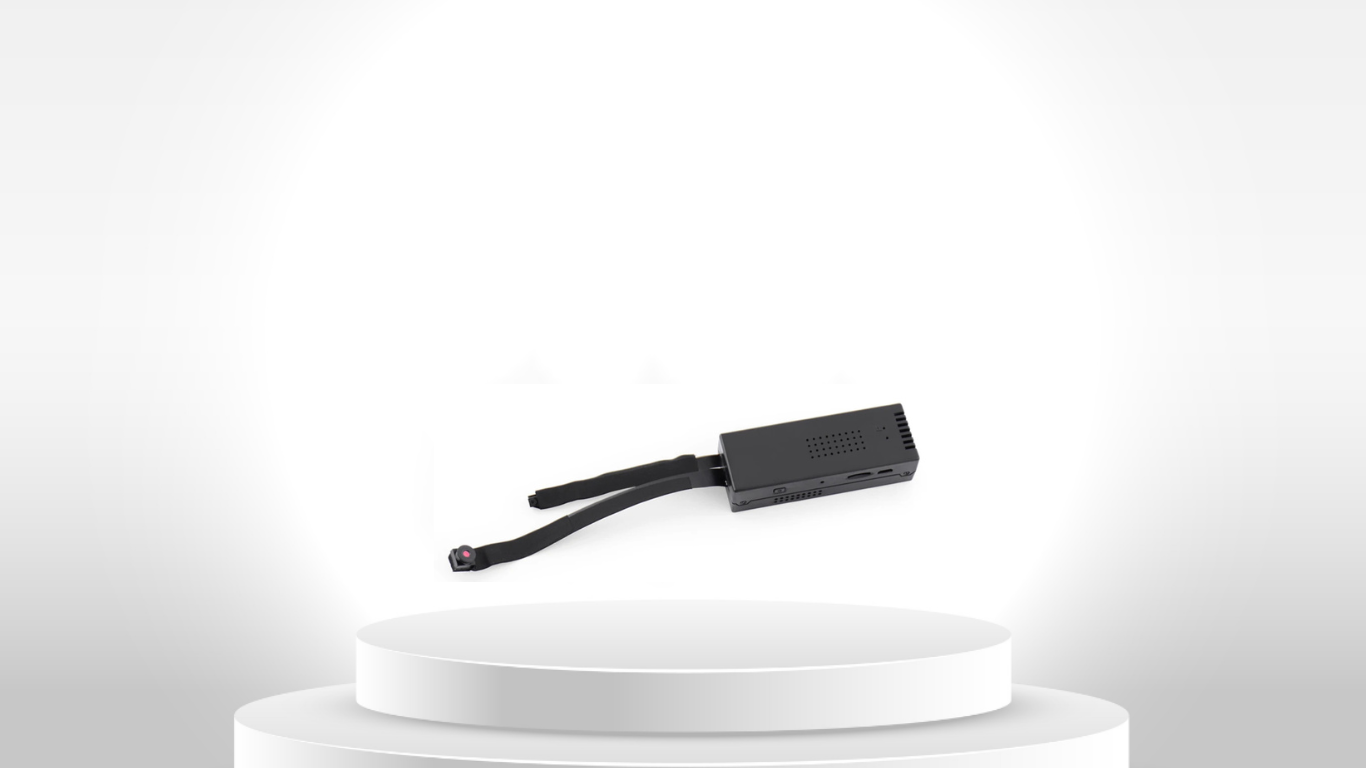

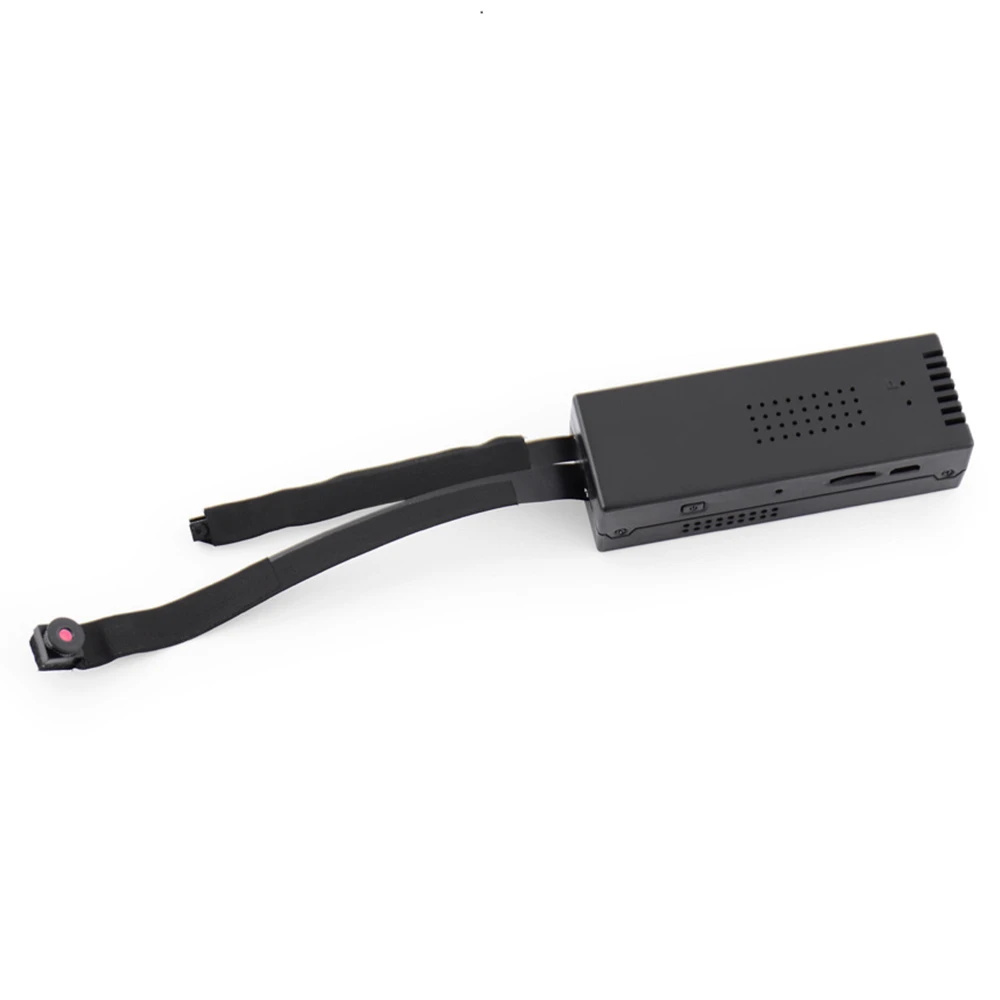

The Cam-Vox 72 External combines a compact 1080P DVR with a 15 cm flexible external camera lens, allowing the camera viewpoint to be positioned separately from the main recorder.
Designed for applications where placement flexibility matters, it supports up to 9 hours of continuous recording or up to 25 days of standby in motion-triggered mode, with local recording to a 128GB Class 10 SD card.
Global distribution by Archthetic® for authorized professional, security and investigative applications.
What Is the Cam-Vox 72 External?
The Cam-Vox 72 External is a compact long-life video recorder with a separate flexible camera lens.
Unlike an integrated camera DVR, the external-lens design allows the lens to be positioned independently while the recorder remains nearby. This makes it suitable for custom installations and controlled viewpoints where the available space or required camera position does not suit a conventional camera body.
The system records Full HD 1080P video locally and can operate without relying on continuous cloud connectivity for its core recording function.
Why Choose an External Lens DVR?
Flexible Camera Placement

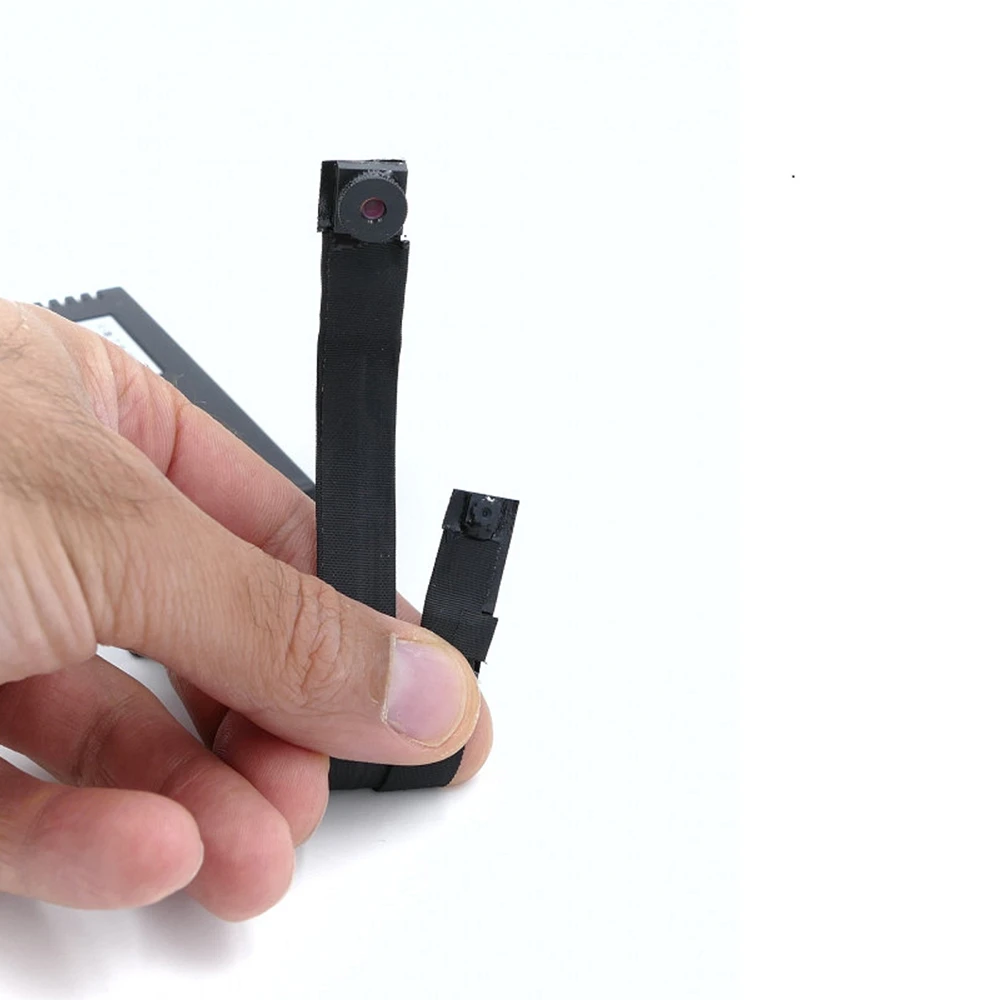

The 15 cm flexible cable lens provides greater control over where the camera is positioned.
This can be useful when integrating the lens into a suitable housing, object or confined space while keeping the main DVR unit positioned separately.
Long-Life Autonomous Operation
The Cam-Vox 72 External is designed for deployments where continuous operator interaction is not practical.
Users can choose between continuous recording for up to 9 hours or motion-triggered operation for extended standby periods of up to 25 days, depending on the configuration and operating conditions.
Local Video Recording
Footage is recorded locally to removable storage, making the system relevant where cloud storage or continuous internet connectivity is unnecessary.
Recorded files can be retrieved after deployment for review, transfer and further analysis.
Key Capabilities
- Full HD 1080P video recording
- 15 cm flexible external camera lens
- Up to 9 hours continuous recording
- Up to 25 days standby in motion-triggered mode
- 128GB Class 10 SD card included
- Motion-triggered recording
- Motion detection through glass
- 72° camera field of view
- Low-light recording capability
- Optional audio recording
- Time and date stamping
- Cyclic recording
- Automatic orientation adjustment
- Windows and Mac configuration software
- Local footage access through USB
- Optional OTG connectivity for compatible mobile devices
- Support for microSD storage up to 256GB
The key distinction is between continuous recording and motion-triggered standby. Up to 25 days of standby should not be interpreted as 25 days of continuous video recording.
Designed For & Common Applications
The Cam-Vox 72 External is most relevant when the requirement combines discreet recording, flexible lens placement and autonomous operation.
Common applications include:
- Professional surveillance operations
- Private investigations
- Authorized security monitoring
- Custom covert camera integration
- Vehicle-based observation
- Temporary surveillance deployments
- Unattended monitoring
- Evidence documentation
- Controlled close-range observation
- Custom enclosures and technical installations
Its external-lens configuration is particularly useful when the required camera viewpoint cannot be achieved with an integrated camera and recorder.
How It Fits Into a Surveillance Workflow
The Cam-Vox 72 External is designed around a straightforward deployment process:
Plan → Position → Configure → Deploy → Record → Retrieve → Review
The lens is positioned for the required viewpoint, while the recorder can remain separately located nearby. Before deployment, recording preferences such as motion sensitivity, video quality, audio and time/date settings can be configured.
Once deployed, the system operates autonomously until footage is retrieved for review.
This makes it different from a conventional network camera designed primarily for permanent installation and live remote viewing.
Technical Specifications
| Specification | Details |
|---|---|
| Video Resolution | Full HD 1080P (1920 × 1080) |
| Camera Lens | 15 cm flexible external cable lens |
| Field of View | 72° |
| Continuous Recording | Up to 9 hours |
| Motion-Triggered Standby | Up to 25 days |
| Battery | 2400mAh 3.7V Li-ion |
| Motion Detection Range | Approximately 4–7 metres |
| Motion Detection | Through glass/window supported |
| Storage Included | 128GB Class 10 SD card |
| Maximum Storage Support | Up to 256GB microSD |
| Video Format | MP4 |
| Video Quality Settings | High / Medium / Low |
| Memory Usage | Approx. 3GB/hr High, 2GB/hr Medium, 1.5GB/hr Low |
| Audio | Optional microphone on/off |
| Time & Date Stamp | Configurable |
| Cyclic Recording | Yes |
| Orientation Adjustment | Automatic flip detection |
| Configuration | Windows and Mac |
| Device Dimensions | 9.7 × 3.7 × 2.5 cm |
| Operating Temperature | 0°C to 45°C |
What to Consider Before Deployment
Before selecting the Cam-Vox 72 External, the main question is whether its architecture matches the operational requirement.
Consider:
Camera placement
Is a separate flexible lens necessary, or would an integrated camera be more practical?
Recording duration
Is continuous recording required, or is motion-triggered operation more suitable?
Field of view
The 72° viewing angle is better suited to controlled viewpoints than wide-area coverage.
Power management
Battery performance depends on the selected recording mode and actual device activity.
Storage requirements
Higher video-quality settings consume storage more quickly.
Retrieval method
Determine whether footage will be reviewed through a computer, USB connection or optional compatible OTG configuration.
Lighting conditions
Camera positioning and available light will affect recorded image quality.
Legal and privacy requirements
Video and audio recording laws vary by jurisdiction. Users are responsible for ensuring that deployment complies with applicable privacy, surveillance, consent and evidence-handling requirements.
Frequently Asked Questions
How long can the Cam-Vox 72 External record?
The Cam-Vox 72 External supports up to 9 hours of continuous recording on a fully charged battery.
In motion-triggered mode, it can remain in standby for up to 25 days, depending on configuration and operating conditions.
These are different operating modes. The 25-day figure does not represent continuous video recording.
What is the advantage of the external lens?
The external lens allows the camera viewpoint and main DVR unit to be positioned separately.
This provides greater flexibility for custom installations, confined spaces and applications where an integrated camera body cannot be positioned appropriately.
How long is the flexible camera cable?
The external camera lens is mounted on a 15 cm (5.9 inch) flexible cable.
Does the Cam-Vox 72 External require WiFi?
The core recording function is based on local storage and does not require continuous internet or cloud connectivity.
This makes it suitable for deployments where independent local recording is preferred.
Can it record when motion is detected?
Yes. The system supports motion-triggered recording, allowing it to remain in standby and activate recording when movement is detected.
Can it detect motion through glass?
The Cam-Vox 72 External is designed with motion detection that can operate through glass or windows under suitable conditions.
This can be relevant for vehicle-based or window-facing deployments, although actual performance depends on positioning, environmental conditions and target movement.
What is the camera’s field of view?
The camera has a 72° field of view.
This makes careful placement important. It is better suited to monitoring a defined area or viewpoint than capturing an entire wide-open environment.
Does it record audio?
Audio recording can be configured on or off.
Users must ensure that any audio recording complies with applicable laws, consent requirements and privacy regulations in the jurisdiction where the product is deployed.
Can footage be reviewed on a mobile device?
Compatible mobile devices may access footage using an appropriate OTG configuration.
OTG availability depends on the selected product configuration and device compatibility.
Can I use a larger memory card?
The system supports microSD storage up to 256GB. A 128GB Class 10 SD card is included with the standard product configuration.
Is this a live remote-viewing WiFi camera?
Not primarily.
The Cam-Vox 72 External is designed as a local recording DVR with a flexible external lens. Its primary strength is autonomous recording and placement flexibility rather than cloud-based, always-connected remote surveillance.
If live remote viewing is the primary requirement, a network-connected surveillance camera may be a more appropriate technology.
Is the Cam-Vox 72 External suitable for custom camera integration?
Yes. The flexible external lens is one of the product’s main advantages for applications requiring custom positioning or integration into a suitable enclosure.
Successful deployment still depends on correct lens positioning, lighting, field of view and access to the recorder.
Is this suitable for professional surveillance applications?
The combination of local 1080P recording, external lens placement, motion-triggered operation and extended standby makes the system relevant to professional security and investigative applications where such use is authorized.
It should be selected based on the actual recording requirement rather than simply because discreet recording is required.
Can it replace a conventional CCTV system?
Not necessarily.
A conventional CCTV system is generally better suited to permanent installation, wide-area coverage and continuous network monitoring.
The Cam-Vox 72 External is more relevant where flexible placement, compact deployment and autonomous local recording are the primary requirements.
Global Distribution by Archthetic
The Cam-Vox 72 External 1080P 128GB DVR is available globally through Archthetic® as part of our Covert Long-Life Video portfolio.
We help professional buyers evaluate specialized technologies based on the actual requirement—not simply the longest specification list.
The Cam-Vox 72 External is particularly relevant when the requirement is:
Flexible lens placement → Local recording → Autonomous operation → Controlled viewpoint
Before procurement, consider whether the deployment requires continuous recording, extended motion-triggered standby, custom camera placement or live remote monitoring, as these requirements may lead to different technology choices.
