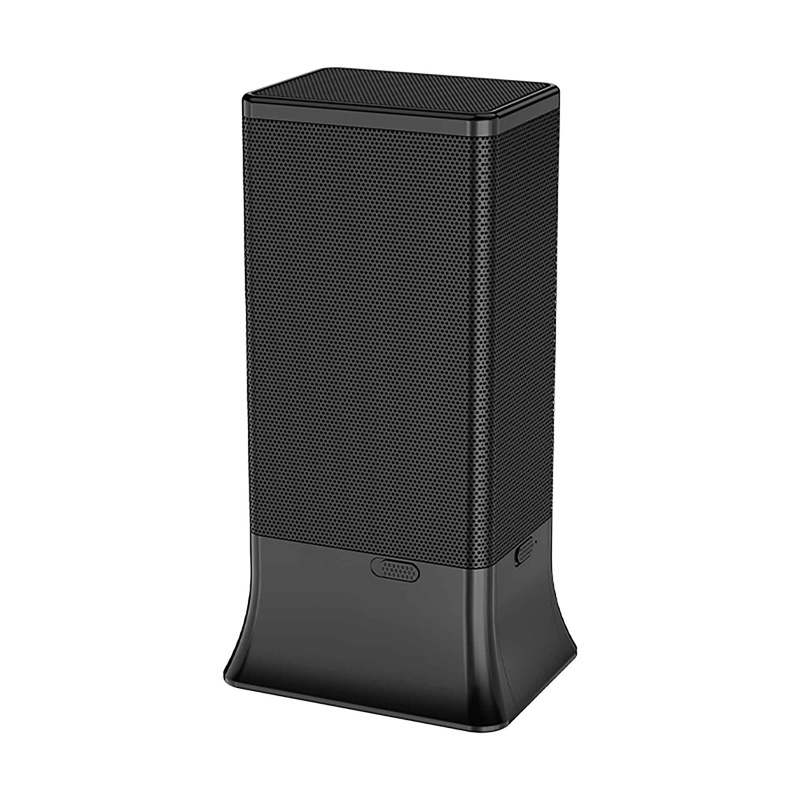

EchoBlock — 360° Tabletop Microphone Suppression System

Protect sensitive conversations with 360° ultrasonic microphone suppression.

EchoBlock is a professional tabletop microphone suppression system designed to reduce the ability of nearby microphones and audio-recording devices to capture clear speech during sensitive meetings and conversations.

The system uses ultrasonic interference to create a manufacturer-stated 360° protection field around the unit. It is designed for professional meeting-room privacy and room-level audio protection.

What Is EchoBlock?

EchoBlock is a tabletop room anti-recorder designed to provide an additional layer of protection against unauthorized audio recording.

Its primary function is to introduce ultrasonic interference that can disrupt microphone recording and reduce the intelligibility of captured speech.

It operates at the microphone capture layer rather than attempting to block wireless communication.

This makes EchoBlock different from:

• RF jammers
• Wi-Fi blockers
• Cellular jammers
• Bluetooth blockers
• TSCM detection equipment
• Conventional audible sound masking systems

What Problem Does EchoBlock Solve?

Sensitive conversations can be recorded through smartphones, digital voice recorders, recording pens and other microphone-enabled devices.

TSCM detection addresses the question:

“Is there a potential surveillance device here?”

EchoBlock addresses a different question:

“How can the conversation itself be protected while it is taking place?”

The system provides an additional technical privacy layer by introducing ultrasonic interference around the protected area.

The objective is to reduce the ability of nearby microphones to capture clear and intelligible speech.

Ultrasonic Microphone Suppression

EchoBlock uses ultrasonic interference as its primary protection technology.

Ultrasonic microphone suppression takes advantage of nonlinear behavior that can exist in microphone hardware. Ultrasonic signals can create interference within the microphone signal path and disrupt recorded speech. Research has demonstrated this effect in commercial and prototype systems.

However, effectiveness is not identical across all microphones.

Research has identified important variables including:

• Microphone design
• Device orientation
• Distance
• Angular position
• Microphone sensitivity
• Signal processing
• Multiple microphone arrays
• Environmental conditions

This means EchoBlock should be understood as a professional microphone suppression technology, not a universal guarantee against every recording device.

360° Microphone Protection

EchoBlock is specified with a 360° anti-recording direction.

This allows the system to create an interference field around the tabletop unit rather than requiring the protection system to be aimed at one specific direction.

However, a 360° interference field should not be interpreted as proof that every microphone receives identical suppression from every position.

Ultrasonic transducers are inherently directional, and research has demonstrated that multi-transducer systems can produce uneven coverage and blind spots depending on geometry and positioning.

For professional use, the correct interpretation is:

360° manufacturer-stated interference field — not universal 360° suppression against every microphone.

Tabletop Room Protection

EchoBlock is designed as a tabletop room privacy system.

Its form factor is intended for professional environments where the conversation itself is sensitive.

Potential applications include:

• Executive meetings
• Boardroom discussions
• Confidential negotiations
• Corporate security meetings
• Legal consultations
• Government meetings
• Sensitive business discussions
• Security and risk meetings
• Privacy-sensitive professional environments

The manufacturer positions the system for medium-to-large rooms.

Silent Ultrasonic Protection

The primary protection method is ultrasonic interference.

Because the operating signal is ultrasonic, it is intended to operate outside normal human hearing.

This provides an important advantage over conventional audible noise masking:

People can continue the conversation normally while the ultrasonic protection operates.

The term “silent” should still be understood as a human-hearing description rather than a claim that the system has no measurable acoustic effects under every condition.

Rechargeable Battery Operation

EchoBlock is designed for both fixed and portable professional use.

The manufacturer specifies:

• 9800 mAh / 12.6 V rechargeable battery
• Up to 4 hours of stated battery life
• AC-powered and AC-charging capability
• Rechargeable operation for portable use

Actual battery runtime depends on operating conditions and should be treated as a manufacturer-stated figure rather than a guaranteed runtime for every operating scenario.

Simple Controls

EchoBlock is designed for straightforward operation.

The manufacturer specifies:

• On/off power control
• Power-level adjustment
• Rechargeable battery
• AC charging and operation

The result is a dedicated privacy system without requiring a smartphone application or network connection for basic operation.

Smartphone Microphone Protection

Smartphones are one of the most common modern devices capable of recording conversations.

Ultrasonic microphone suppression can interfere with smartphone microphone systems, but research demonstrates that results vary between devices and positions.

EchoBlock should therefore be positioned as:

Designed to reduce smartphone microphone recording effectiveness.

It should not be positioned as:

Guaranteed to stop every smartphone from recording.

Different microphone arrays, processing systems and device designs can respond differently.

Digital Voice Recorder Protection

Digital voice recorders use dedicated microphones to capture speech.

EchoBlock’s microphone-suppression architecture is relevant to this type of recording device.

However, effectiveness depends on the microphone, distance, orientation and surrounding conditions.

For professional security programs, device-specific validation is preferable to assuming that one test result applies to every recorder.

Recording Pen Protection

Recording pens use compact microphones and can therefore fall within the type of microphone-based recording device addressed by ultrasonic suppression technology.

However, small microphone designs can differ substantially.

EchoBlock should therefore be understood as a microphone suppression system, not a guaranteed recorder-specific blocker.

EchoBlock Is Not an RF Jammer

EchoBlock does not operate as a cellular, Wi-Fi or Bluetooth jammer.

Its purpose is microphone suppression.

The distinction is simple:

RF jamming interferes with wireless communication.

Microphone suppression interferes with audio capture.

EchoBlock is designed around the second problem.

This means a smartphone can potentially remain connected to its network while its microphone recording capability is being subjected to ultrasonic interference.

EchoBlock and Video Recording

Microphone suppression and video suppression are different technical problems.

EchoBlock primarily addresses the microphone and audio-recording layer.

If a camera records video without depending on its microphone, ultrasonic microphone suppression does not directly disable the optical recording process.

For that reason, EchoBlock should not be marketed as a universal hidden-camera blocker.

A broader camera-security requirement may require separate detection or physical security technologies.

EchoBlock vs TSCM Detection

EchoBlock and TSCM detection perform different roles.

TSCM Detection

TSCM equipment is used to identify, investigate and assess potential surveillance threats.

EchoBlock

EchoBlock provides an additional defensive layer intended to reduce microphone recording effectiveness during sensitive conversations.

A professional security architecture may therefore use both:

Detect → Assess → Protect → Verify

Detection helps identify potential threats.

Protection helps reduce exposure while sensitive information is being discussed.

Verification determines what the detected or observed condition actually represents.

EchoBlock does not replace the detection process.

EchoBlock vs Audible Noise Masking

Audible noise masking introduces sound that people can hear.

EchoBlock uses ultrasonic interference as its primary protection method.

Requirement	EchoBlock	Audible Noise Masking
Primary method	Ultrasonic microphone suppression	Audible acoustic masking
Human-perceived noise	Designed to be inaudible	Audible
Microphone interference	Yes	Yes, through masking
Conversation experience	Designed to preserve normal conversation	Additional audible sound is present
Protection architecture	Manufacturer-stated 360° field	Depends on system
Battery operation	Yes	Model-dependent
Primary use	Microphone recording protection	Speech privacy / sound masking

Neither approach should automatically be considered better.

The appropriate technology depends on the environment, microphone threat, room requirements and privacy objective.

EchoBlock vs Black Tino MSK

Both systems use ultrasonic microphone suppression, but they are designed around different deployment requirements.

Requirement	EchoBlock	Black Tino MSK
Product architecture	Tabletop room system	Portable suppression kit
Primary scale	Medium-to-large room	Short-range protection
Protection field	Manufacturer-stated 360°	Multi-directional
Primary application	Meeting-room privacy	Portable localized privacy
Battery	9800 mAh / 12.6 V	3600 mAh
Stated battery life	Up to 4 hours	Configuration-dependent
Main search entity	Tabletop Room Anti-Recorder	Short-Range Microphone Suppression System
Best fit	Room-level privacy	Smaller or mobile protection requirements

The distinction is therefore:

EchoBlock = tabletop room protection.

Black Tino MSK = portable short-range protection.

EchoBlock vs Catenaccio BRMSK

Catenaccio BRMSK and EchoBlock both address microphone recording, but their protection architectures are different.

EchoBlock

• Tabletop system
• Manufacturer-stated 360° interference
• Ultrasonic microphone suppression
• Medium-to-large room positioning
• Rechargeable operation

Catenaccio BRMSK

• Boardroom-oriented system
• Directional protection
• Audio masking and microphone suppression
• Designed for sensitive meeting environments
• Multiple units can support larger protected areas

The correct choice depends on the room, protection geometry and operational requirement.

Technical Specifications

Specification	EchoBlock
Product Type	360° Tabletop Microphone Suppression System
Primary Technology	Ultrasonic interference
Protection Direction	360° manufacturer-stated
Intended Environment	Medium-to-large rooms
Battery Capacity	9800 mAh / 12.6 V
Stated Battery Life	Up to 4 hours
Power	AC powered / AC charging
Controls	On/Off + power-level adjustment
Product Dimensions	10 × 4.5 × 4 in
Approx. Dimensions	25.4 × 11.4 × 10.2 cm
Weight	Shipping weight approximately 2.25 lb
Primary Target Layer	Microphone / audio recording

Specifications are based on current manufacturer product information. Actual performance depends on operating conditions, target device and environment.

Performance Limitations

Ultrasonic microphone suppression has genuine technical limitations.

Independent research has demonstrated:

• Directional behavior of ultrasonic transducers
• Uneven interference patterns
• Angular blind spots
• Device-to-device variation
• Dependence on microphone position
• Dependence on distance
• Effects from microphone hardware characteristics

Therefore:

A manufacturer-stated 360° field is not the same as independently validated 360° suppression against every microphone.

Similarly, a manufacturer specification should not be presented as a guaranteed result against every smartphone, recorder or microphone.

This distinction is important when evaluating professional counter-surveillance equipment.

What EchoBlock Does Not Guarantee

EchoBlock does not automatically guarantee:

• That every microphone will stop recording
• That every recording will become unusable
• That every smartphone will respond identically
• That every voice recorder will be equally affected
• That every microphone position will receive identical suppression
• That an optical camera will be disabled
• That a room is completely free from surveillance
• That a conversation cannot be recorded by another method

Its role is to provide an additional technical privacy-protection layer.

Legal and Professional Use

EchoBlock is a defensive privacy technology.

Organizations should use microphone suppression technology in accordance with applicable laws, regulations, workplace policies and security procedures.

The technology does not itself create legal authority to restrict recording or interfere with another person’s equipment.

For high-security environments, EchoBlock should be considered as one component of a broader security architecture rather than a substitute for TSCM inspection, access controls, physical security or information-security procedures.

Frequently Asked Questions

What is EchoBlock?

EchoBlock is a 360° tabletop microphone suppression system designed to reduce the ability of nearby microphones and audio-recording devices to capture clear speech.

How does EchoBlock work?

EchoBlock uses ultrasonic interference intended to disrupt microphone recording and reduce the intelligibility of captured speech.

What is ultrasonic microphone suppression?

Ultrasonic microphone suppression uses high-frequency acoustic signals to interfere with microphone capture. Microphone hardware can respond to ultrasonic energy through nonlinear behavior, creating interference in the recorded signal.

Is EchoBlock designed for room-level protection?

Yes. EchoBlock is designed as a tabletop system for medium-to-large room privacy applications, with a manufacturer-stated 360° interference field.

Does EchoBlock work with smartphones?

It is designed to address microphone-based recording from smartphones, but effectiveness varies by device, microphone design, orientation, distance and environmental conditions.

Does EchoBlock work with digital voice recorders?

It is designed for microphone-based recording devices, including digital voice recorders. Actual performance depends on the specific microphone and operating conditions.

Does EchoBlock work with recording pens?

Recording pens can fall within the type of microphone-based device addressed by this technology, but performance should not be assumed to be identical across all models.

Does EchoBlock block cellular, Wi-Fi or Bluetooth signals?

No. EchoBlock is a microphone suppression system, not an RF communication jammer.

Can EchoBlock stop video recording?

Not directly. Its primary function is microphone suppression. A camera that records video independently of its microphone requires a different protection approach.

Is the 360° protection field guaranteed against every microphone?

No. The 360° specification describes the manufacturer’s stated interference direction. Independent research has shown that ultrasonic systems can have uneven coverage and angular blind spots.

How large an area can EchoBlock protect?

The system is positioned for medium-to-large rooms. The practical level of microphone suppression depends on room geometry, device position, distance, microphone characteristics and environmental conditions.

How long can EchoBlock operate on battery power?

The manufacturer states up to 4 hours of battery operation from its 9800 mAh / 12.6 V rechargeable battery. Actual runtime varies with operating conditions.

Is EchoBlock suitable for boardrooms?

It can be considered for boardrooms and other sensitive meeting environments where a tabletop, room-level microphone protection system is appropriate. The correct system should be selected according to room size and required protection geometry.

What is the difference between EchoBlock and Black Tino MSK?

EchoBlock is positioned as a tabletop room-level system with a manufacturer-stated 360° interference field, while Black Tino MSK is positioned as a portable short-range microphone suppression system.

What is the difference between EchoBlock and Catenaccio BRMSK?

EchoBlock uses a tabletop 360° architecture for room-level protection. Catenaccio BRMSK is designed around directional boardroom audio masking and microphone suppression.

Does EchoBlock replace TSCM?

No. TSCM detection and microphone suppression solve different security problems. A professional security program may use detection, assessment and protection as separate layers.

What should buyers evaluate before choosing a microphone suppression system?

The most important factors include:

• Room size
• Protection geometry
• Target microphone types
• Distance
• Device orientation
• Ultrasonic coverage
• Known performance limitations
• Battery requirements
• Fixed or portable operation
• Need for TSCM integration
• Applicable legal and organizational requirements

Why Choose EchoBlock?

EchoBlock is designed for organizations that need:

Tabletop + 360° + Ultrasonic + Microphone Suppression + Room-Level Privacy

Its strongest differentiators are its tabletop form factor, manufacturer-stated 360° interference field, rechargeable battery and straightforward operation.

The important point is not the claim that EchoBlock can stop every recording device.

The value is its role as a dedicated room-level microphone protection layer.

Final Takeaway

EchoBlock is a professional 360° Tabletop Microphone Suppression System designed to reduce the ability of nearby microphones to capture clear speech during sensitive meetings.

Its strongest technical identity is:

360° Ultrasonic Microphone Suppression for Sensitive Meetings.

It is not an RF jammer, it is not a TSCM detector, and it should not be presented as a universal hidden-camera blocker.

For professional security environments, EchoBlock fits into a broader architecture:

TSCM Detection → Threat Assessment → EchoBlock Protection → Verification

It adds a defensive privacy layer without replacing the security processes around it.
